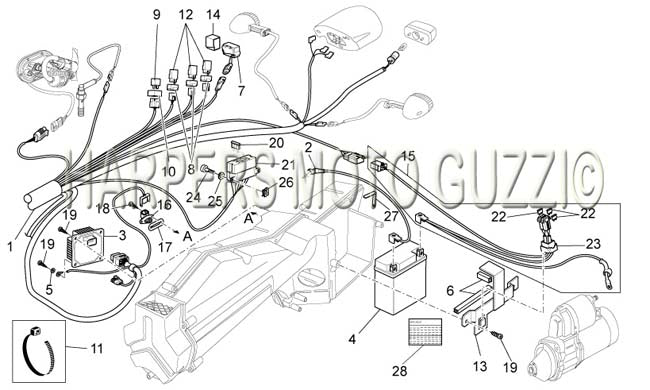

2010 Nevada 750 S Frame Rear Electrical System
| Position | Part Number | Description |
|---|---|---|
| - | 14609650 | TIE WRAP (#14609650) |
| - | ||
| 1 | 883077 | Main Wiring Harness - Nevada (#883077) |
| 2 | 883779 | Ground-battery lead (#883779) |
| 3 | 883798 | ELETTRONIC INJECT.DEVICE (#883798) |
| 4 | 638733 | Yuasa YTX14-BS (#638733) |
| 5 | 95129101 | WASHER FUEL PUMP (#95129101) |
| 6 | 890517 | LH duct gasket (#890517) |
| 7 | 584509 | Fuel cut off/ tilt sensor (#584509) |
| 8 | ||
| 9 | 29732550 | RELAY (#29732550) |
| 10 | ||
| 11 | 49609601 | TIE STRAP (#49609601) |
| 12 | ||
| 13 | 883698 | FIXING BATTERY (#883698) |
| 14 | ||
| 15 | 883801 | Wiring (#883801) |
| 16 | 30729330 | AIR TEMP SENSOR (#30729330) |
| 17 | 30027931 | GASKET (#30027931) |
| 18 | ||
| 19 | ||
| 20 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 21 | 584211 | FUSE HOLDER TERM.BOARD 6 (#584211) |
| 22 | 28742562 | FUSE 30A (#28742562) |
| 23 | ||
| 24 | 98682215 | Hex Socket Screw M5X15 (#98682215) |
| 25 | 95100059 | WASHER (#95100059) |
| 26 | ||
| 27 | 31112965 | PLATE (#31112965) |
| 28 | 32517710 | Decal (#32517710) |
