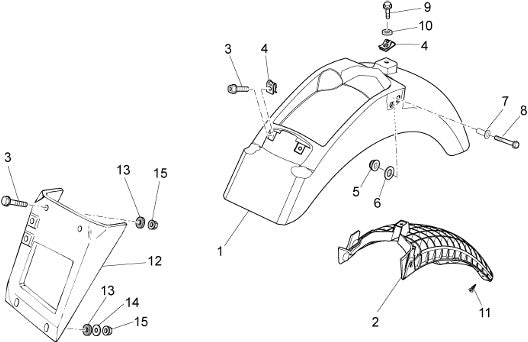

2011 2012 V7 Racer 750 E3 Frame Rear Body I Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | 978947 | REAR COVER (#978947) |
| 3 | ||
| 4 | 28576591 | CLIP (#28576591) |
| 5 | 98370831 | Screw (#98370831) |
| 6 | 91120806 | SPACER (#91120806) |
| 7 | ||
| 8 | 92787008 | NUT (#92787008) USE 860651 |
| 9 | ||
| 10 | 91180601 | Spacer (#91180601) |
| 11 | ||
| 12 | 31438765 | Splash Guard (#31438765) |
| 13 | 93110060 | RUBBER WASHER (#93110060) |
| 14 | 95100141 | WASHER (#95100141) |
| 15 |
