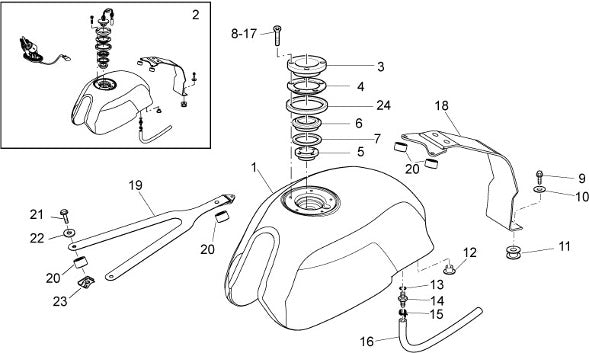

2011 2012 V7 Racer 750 E3 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 1 | 887205 | Fuel tank (#887205) |
| 1 | 887207 | FUEL TANK (#887207) |
| 1 | 887445 | Fuel tank (#887445) |
| 1 | 887944 | Fuel tank (#887944) |
| 1 | B06303600Y02 | Fuel tank, black (#B06303600Y02) |
| 1 | B063163 | FUEL TANK EU (#B063163) |
| 2 | 2R000009 | Metal fuel tank kit (#2R000009) |
| 3 | 03101900 | GAS CAP FLANGE (#03101900) |
| 3 | 886369 | RING NUT (#886369) |
| 4 | 03103500 | SPACER (#03103500) |
| 4 | 883193 | SPACER (#883193) |
| 5 | 03101720 | RESTRICTOR 38MM (#03101720) |
| 6 | 03102200 | GAS CAP SEAT (#03102200) |
| 7 | 03101600 | GAS CAP GASKET (#03101600) |
| 8 | 03103200 | SCREW A (#03103200) |
| 8 | 98370520 | BOLT (#98370520) |
| 9 | AP8152291 | Screw w/flange (#AP8152291) |
| 10 | 95005312 | Washer, 8.5x24x2 (#95005312) |
| 11 | 02107100 | TANK GROMMET (#02107100) |
| 11 | 91551131 | GROMMET (#91551131) |
| 12 | 883252 | SPACER (#883252) |
| 12 | AP8221128 | T. Bushing (#AP8221128) |
| 13 | AP8120965 | O-Ring (#AP8120965) |
| 14 | 2B001203 | Connector Pipe (#2B001203) |
| 15 | AP8101595 | Hose Clamp (#AP8101595) |
| 16 | 00823944050 | HOSE (#00823944050) |
| 17 | 98692210 | Hex socket screw (#98692210) |
| 18 | 886617 | Belt (#886617) |
| 18 | B063236 | Cinghia post. rosso (#B063236) |
| 19 | 886625 | Belt (#886625) |
| 19 | B063234 | Belt (#B063234) |
| 20 | 886370 | Bush (#886370) |
| 21 | 98370616 | BOLT (#98370616) |
| 22 | 95100141 | WASHER (#95100141) |
| 23 | 28576591 | CLIP (#28576591) |
| 24 | 03102400 | FLANGE GASKET (#03102400) |
