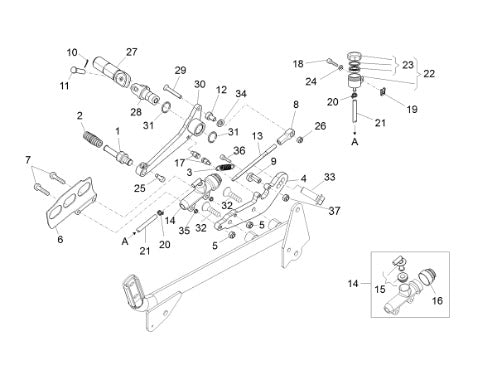

2011 2012 V7 Racer 750 E3 Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 886665 | Brake lever pin (#886665) |
| 2 | AP8120912 | Lever rubber (#AP8120912) |
| 3 | AP8121927 | Rear brake lever spr (#AP8121927) |
| 4 | 898288 | RH Plate (#898288) |
| 5 | 92630206 | NUT (#92630206) |
| 6 | 01665410 | REAR MASTER CYL. GUARD (#01665410) |
| 7 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 8 | 18257551 | BLOCK (#18257551) |
| 9 | 886666 | BUSHING (#886666) |
| 10 | 95401215 | COTTER PIN (#95401215) |
| 11 | 23442210 | PIVOT PIN A (#23442210) |
| 12 | 898287 | Brake lever pin (#898287) |
| 13 | 978970 | POST BRAKE PUMP DRIVING ROD (#978970) |
| 14 | AP8133643 | Rear Brake Pump - Nevada (#AP8133643) 10477634 |
| 15 | AP8213057 | Rear brake pump union (#AP8213057) |
| 16 | AP8113288 | Rubber bellows (#AP8113288) |
| 17 | 898286 | Fixing pin (#898286) |
| 18 | 98682215 | Hex Socket Screw M5X15 (#98682215) |
| 19 | AP8102375 | Clip (#AP8102375) |
| 20 | AP8101594 | Hose clamp D10,1* (#AP8101594) |
| 21 | 00823950050 | TUBE (#00823950050) |
| 22 | AP8133873 | Brake oil tank complete (#AP8133873) |
| 23 | AP8113553 | Tank Cap - Nevada (#AP8113553) |
| 24 | 95100059 | WASHER (#95100059) |
| 25 | AP8150044 | Hex socket screw (#AP8150044) |
| 26 | AP8150115 | LOW SELF-LOCKING NUT 6-UNI 7474/2 5.8 (#AP8150115) |
| 27 | 898281 | Foot rests (#898281) |
| 28 | 898612 | Support (#898612) |
| 29 | AP8150468 | Screw M6x40 (#AP8150468) |
| 30 | 898285 | Brake lever (#898285) |
| 31 | AP9100477 | O-ring 18x2 (#AP9100477) |
| 32 | 98252420 | Screw M8x20 (#98252420) |
| 33 | AP8152320 | Screw w/ flange M10x (#AP8152320) |
| 34 | ||
| 35 | AP8134640 | Air box spacer (#AP8134640) |
| 36 | AP8150051 | Hex socket screw M5X35* (#AP8150051) |
| 37 | AP8150451 | NUT M5-UNI7474-A2-70 INOX (#AP8150451) |
