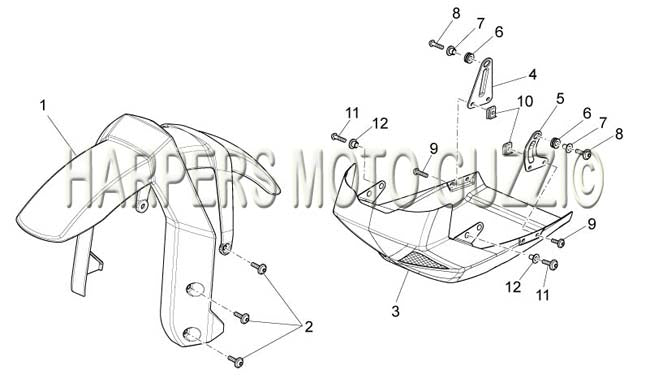

2011 2013 Stelvio 1200 8v Std NTX Front Mud Pillar
| Position | Part Number | Description |
|---|---|---|
| 1 | 88625400BM | FRONT FENDER (#88625400BM) |
| 1 | 88625400NI | FRONT FENDER (#88625400NI) |
| 1 | 88625400XV6 | FRONT FENDER (#88625400XV6) |
| 1 | 88625400Y02 | FRONT FENDER (#88625400Y02) |
| 1 | ||
| 1 | 978445 | FRONT FENDER (#978445) |
| 2 | AP8152302 | SCREW W/ FLANGE (#AP8152302) USE 2B014101 |
| 3 | 886329 | Sump guard (#886329) |
| 4 | 978777 | Clamp (#978777) |
| 5 | 978776 | Clamp (#978776) |
| 6 | 91551010 | GROMMET (#91551010) |
| 7 | AP8221128 | T. Bushing (#AP8221128) |
| 8 | 98350425 | Screw (#98350425) |
| 9 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 10 | 248419 | SPRING PLATE (#248419) |
| 11 | 98350416 | Screw (#98350416) |
| 12 | AP8121096 | Disc cover bush (#AP8121096) |
