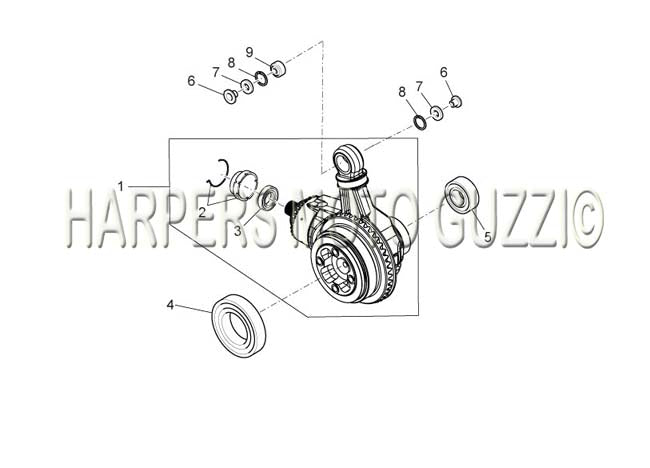

2011 2013 Stelvio 1200 8v Std NTX Trans Cpl Bevel Gear
| Position | Part Number | Description |
|---|---|---|
| 1 | 976581 | Guzzi Carc drive CROWN WHEEL AND PINION ASSEMBLY GREY (#976581) |
| 2 | 05352430 | Ring Nut (#05352430) |
| 3 | 90404558 | Gasket Ring 45X58X7 (#90404558) |
| 4 | 92208518 | BALL BEARING 85X120X18 (#92208518) |
| 5 | 92204230 | BEARING (#92204230) |
| 6 | AP8121098 | Ball joint bush (#AP8121098) |
| 7 | AP8120485 | Gasket ring (#AP8120485) |
| 8 | 90273026 | Circlip (#90273026) |
| 9 | 05638130 | Ball Joint (#05638130) |
