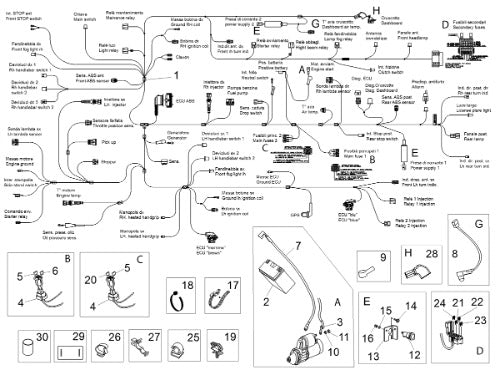

2011 2017 Stelvio 1200 8v E3 ABS Std NTX Frame Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 899505 | CABLE HARNESS (#899505) USE 884263 |
| 2 | 05704531 | BATTERY 12V YTX20CH-BS (#05704531) |
| 3 | 977916 | Insulating cap (#977916) |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | 06747900 | GROUND STRAP (#06747900) |
| 8 | ||
| 9 | 581061 | CAP (#581061) |
| 10 | 95129131 | Washer (#95129131) |
| 11 | 92609408 | Nut M8x1,25 (#92609408) |
| 12 | ||
| 13 | 886911 | Support (#886911) |
| 14 | 98350210 | Screw (#98350210) |
| 15 | 95008205 | Washer 5.3mm (#95008205) |
| 16 | 92787205 | NUT (#92787205) |
| 17 | 06609600 | HOSE CLAMP (#06609600) |
| 18 | 14609650 | TIE WRAP (#14609650) |
| 18 | 49609601 | TIE STRAP (#49609601) |
| 18 | 640879 | HOSE CLAMP (#640879) |
| 18 | 93304390 | TIE WRAP (#93304390) |
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | ||
| 25 | ||
| 26 | CM013202 | STOP CABLE/PIPE SPRING (#CM013202) |
| 27 | ||
| 28 | 856152 | Insulating cap (#856152) |
| 29 | 887947 | Protection (#887947) |
| 30 |
