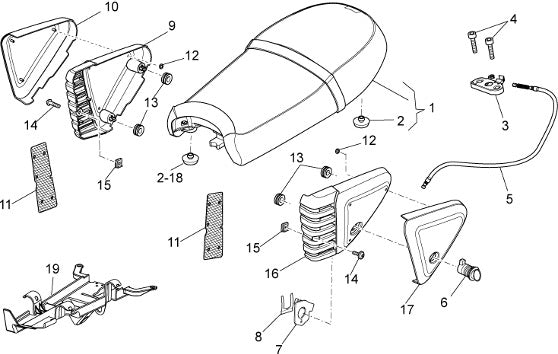

2012 2013 V7 Special stone E3 750 Saddle Central Bod
| Position | Part Number | Description |
|---|---|---|
| 1 | 88793900A1 | TWO-SEAT SADDLE (#88793900A1) |
| 1 | 978931 | DUAL SEAT FOR V7 CAFE (#978931) |
| 2 | 32461610 | Rubber Spacer - Nevada (#32461610) |
| 3 | AP8102913 | Pass.saddle connecti (#AP8102913) |
| 4 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 5 | 883295 | SADDLE TRASMISSION (#883295) |
| 6 | 977527 | SERRATURA BAULETTO (#977527) |
| 7 | AP8121420 | Fork Spring (#AP8121420) |
| 8 | 978415 | Plate (#978415) |
| 9 | 978941 | R.H. BODY SIDE (#978941) |
| 10 | 2H000021000XN2 | R.H. BODY SIDE (#2H000021000XN2) |
| 10 | 2H000078000YE5 | R.H. BODY SIDE (#2H000078000YE5) |
| 10 | 88793700XR7 | R.H. BODY SIDE (#88793700XR7) |
| 10 | 88794200XN6 | RH side panel, black (#88794200XN6) |
| 10 | 978940 | R.H. BODY SIDE (#978940) |
| 10 | B06312500XN2 | RH side panel, black (#B06312500XN2) |
| 11 | 978942 | R.H. BODY SIDE (#978942) |
| 12 | 2B002549 | LOCK WASHER (#2B002549) |
| 13 | 91551086 | GROMMET (#91551086) |
| 14 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 15 | AP8102375 | Clip (#AP8102375) |
| 16 | 978944 | L.H. BODY SIDE (#978944) |
| 17 | 2H000022000XN2 | R.H. BODY SIDE (#2H000022000XN2) |
| 17 | 2H000079000YE5 | R.H. BODY SIDE (#2H000079000YE5) |
| 17 | 88793800XR7 | R.H. BODY SIDE (#88793800XR7) |
| 17 | 88794300XN6 | LH side panel, black (#88794300XN6) |
| 17 | 978943 | L.H. BODY SIDE (#978943) |
| 17 | B06312600XN2 | LH side panel, black (#B06312600XN2) |
| 18 | B063429 | STOP PAD (#B063429) |
| 19 | B063431 | FRAME COVER (#B063431) |
