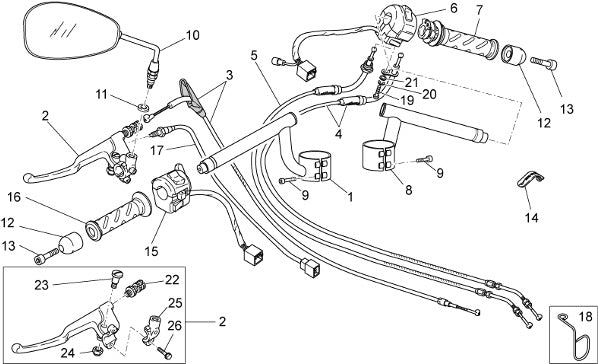

2013 2014 V7 Racer 750 E3 2012 2013 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | 32605510 | CL LEVER ASSY (#32605510) |
| 3 | 883940 | CLUTCH CABLE RELEASE (#883940) |
| 4 | B063247 | THROTTLE OPENING BOWDEN (#B063247) |
| 5 | B063248 | THROTTLE CLOSING BOWDEN (#B063248) |
| 6 | B063135 | RIGHT HANDLEBAR SWITCH (#B063135) |
| 7 | 32603310 | RH Hand Grip - Breva (#32603310) |
| 8 | ||
| 9 | 98692325 | BOLT (#98692325) |
| 10 | 883802 | GRISO MIRROR LH/RH (#883802) USE 978570 |
| 10 | 978570 | MIRROR (#978570) |
| 11 | 91181003 | SPACER (#91181003) |
| 12 | 32602860 | ANTI V WEIGHT SILVER (#32602860) |
| 13 | 98690335 | Screw (#98690335) |
| 14 | 01609630 | Clamp (#01609630) |
| 14 | 03609600 | RETAINER (#03609600) |
| 15 | 887822 | LEFT HANDLEBAR SWITCH (#887822) USE B063511 |
| 16 | 32603010 | LH Hand Grip - Breva (#32603010) |
| 17 | 29759150 | SWITCH (#29759150) |
| 18 | AP8221172 | CABLE-GUIDE (#AP8221172) |
| 19 | 98230510 | ALLEN BOLT (#98230510) |
| 20 | 95008305 | Washer (#95008305) |
| 21 | 95021105 | LOCK WASHER (#95021105) |
| 22 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 23 | AP8213028 | Screw (#AP8213028) |
| 24 | AP8118490 | Nut (#AP8118490) |
| 25 | 30601060 | BRACKET (#30601060) USE AP 8118349 |
| 26 | 97202325 | Black Screw w/flange (#97202325) |
