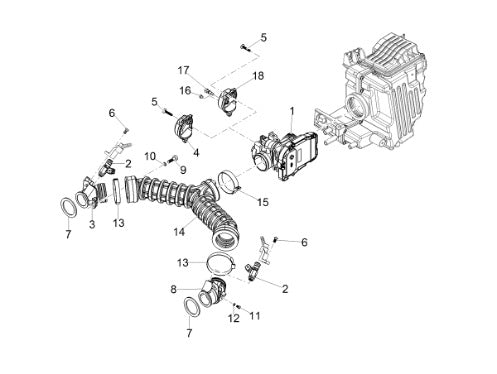

2013 2014 V7 Racer 750 E3 2012 2013 Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | CM228301 | ELETTRONIC INJECT.DEVICE (#CM228301) |
| 1 | CM228302 | Centralina elettronica per iniezione (#CM228302) |
| 2 | ||
| 3 | 32115010 | RH Manifold - Breva (#32115010) |
| 4 | 880260 | THROTTLE BODY COVER (#880260) |
| 5 | B016796 | CONVEX HEAD SCREW TORX M5X16 (#B016796) |
| 6 | AP8152298 | Screw w/ flange (#AP8152298) |
| 7 | 32115510 | Gasket - Breva (#32115510) |
| 8 | 32115011 | LH Manifold - Breva (#32115011) |
| 9 | 98682322 | Screw (#98682322) |
| 10 | 03013800 | WAVE WASHER (#03013800) |
| 11 | 98310609 | Screw (#98310609) |
| 12 | 95100116 | WASHER (#95100116) |
| 13 | 93305057 | CLAMP (#93305057) |
| 14 | 887812 | SLEEVE (#887812) |
| 15 | 93305061 | CLAMP (#93305061) |
| 16 | AP8220488 | Mushroom rubber (#AP8220488) |
| 17 | B063853 | TIMING COVER (#B063853) |
| 18 | 2B000304 | Throttle body cover 35kw (#2B000304) |
