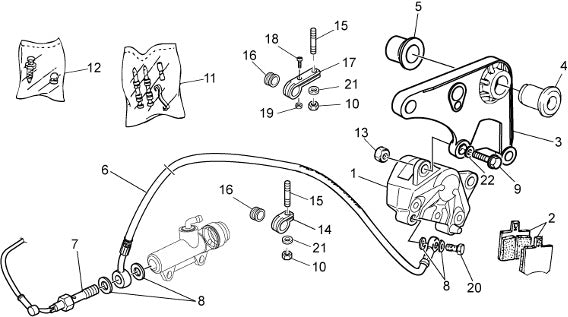

2015 V7 Racer 750 E3 Frame Rear Brake Caliper
| Position | Part Number | Description |
|---|---|---|
| 1 | 887449 | Rear brake caliper (#887449) |
| 2 | ||
| 3 | 887431 | Support plate (#887431) |
| 4 | 31634281 | Bush (#31634281) |
| 5 | 32634160 | Spacer - Nevada (#32634160) |
| 6 | ||
| 7 | 883192 | Brake Light Switch (#883192) |
| 8 | ||
| 9 | ||
| 10 | ||
| 11 | 31659181 | Pads Kit (#31659181) |
| 12 | 31659281 | Bleeder + Cap (#31659281) |
| 13 | ||
| 14 | 03658430 | FASCETTA CORTA (#03658430) |
| 15 | 96451316 | Stud Bolt M6 X 16 (#96451316) |
| 16 | 03658201 | BUSHING (#03658201) |
| 17 | 03658330 | FASCETTA LUNGA (#03658330) |
| 18 | 98257410 | Screw (#98257410) |
| 19 | 92630104 | NUT (#92630104) |
| 20 | ||
| 21 | 95008306 | WASHER (#95008306) |
| 22 | 61270300 | WASHER (#61270300) |
