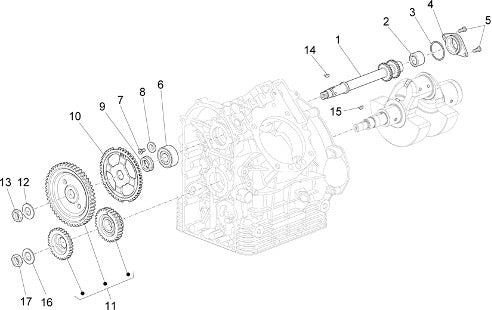

2016 California 1400 Corazzieri E3 ABS Engine Timing System
| Position | Part Number | Description |
|---|---|---|
| 1 | 976330 | Distribution Shaft (#976330) |
| 2 | 976381 | Needle Bearing (#976381) |
| 3 | 976488 | ANELLO OR 37,82X1,78 (#976488) |
| 4 | 976331 | Flange (#976331) |
| 5 | 98350315 | Screw (#98350315) |
| 6 | 976355 | DOUBLE SIDE SHIELDED BEARING (#976355) |
| 7 | ||
| 8 | 873928 | WASHER (#873928) |
| 9 | 887524 | SPACER (#887524) |
| 10 | 887030 | PHONIC WHEEL (#887030) |
| 11 | 85269R | OIL PUMP DRIVING PINION (#85269R) |
| 12 | 14433400 | WASHER (#14433400) |
| 13 | 829232 | Nut for securing front pulley assy. (#829232) |
| 14 | 887044 | ROUND SPLINE (#887044) |
| 15 | 91600365 | Transmission Key 3X6,5 (#91600365) |
| 16 | 976665 | DISC SPRING (#976665) |
| 17 | 976649 | NUT FOR CRANKSHAFT (#976649) |
