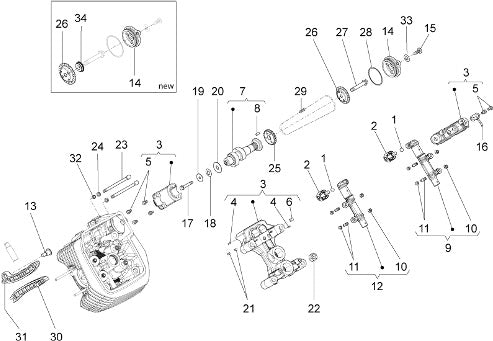

2016 California 1400 Touring SE E3 ABS Engine Lh Cylinder Timing System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 878574 | SPERICAL PAD (#878574) |
| 2 | ||
| 3 | 887162 | Rockers axle support SX (#887162) |
| 4 | 872759 | Dowel (#872759) |
| 5 | 015792 | SCREW (#015792) |
| 6 | 842360 | TAPER THREADED M6X10 (#842360) |
| 7 | ||
| 8 | 976589 | REFERENCE DOWELL (#976589) |
| 9 | ||
| 10 | 879916 | LOW HEXAGONAL NUT (#879916) |
| 11 | 879707 | SCREW TIP ASSY (#879707) |
| 12 | ||
| 13 | 878868 | SCREW SPACER FOR CHAIN TIGHTENING ROD (#878868) |
| 14 | ||
| 14 | ||
| 15 | 875173 | CONVEX HEAD SCREW WITH TORX IMPRESSION (#875173) |
| 16 | ||
| 17 | 414837 | FLANGED HEX HEAD SCREW (#414837) |
| 18 | 879938 | BELLEVILLE WASHER (#879938) |
| 19 | 879936 | CALIBRATED RING (#879936) |
| 20 | 879937 | CALIBRATED RING (#879937) |
| 21 | ||
| 22 | 825694 | NUT (#825694) |
| 23 | 487444 | SCREW (#487444) |
| 24 | 976674 | Flat washer (#976674) |
| 25 | 976350 | Ring Gear (#976350) |
| 26 | ||
| 26 | 874601 | SHEET OIL BREATHER (#874601) |
| 27 | 843060 | FLANGED HEXAGONAL HEAD SCREW (#843060) |
| 28 | 880965 | Gasket ring (#880965) |
| 29 | 976341 | TIMING CHAIN (#976341) |
| 30 | 976338 | Chain Guide Plate (#976338) |
| 31 | 976337 | MOBILE SLIDING SHOE (#976337) |
| 32 | 244585 | SPACER (#244585) |
| 33 | 95129100 | WASHER (#95129100) |
| 34 |
