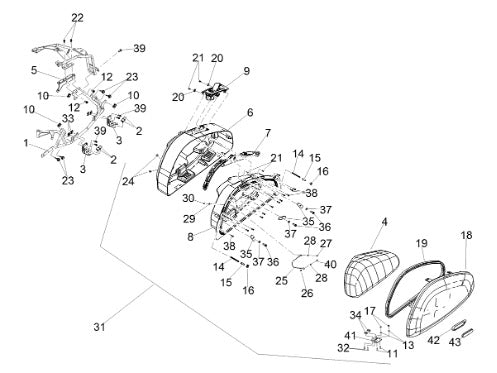

2016 Mgx 21 Flying Fortress 1400 ABS E4 Body Lh Trunk
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B002840 | BAG FRAME (LEFT) (#2B002840) |
| 2 | AP8120455 | Rubber spacer (#AP8120455) |
| 3 | 2B003069 | BAGS SUPPORT BRACKET (#2B003069) |
| 4 | 2B003645 | INNER BAG CASE (LEFT SIDE) (#2B003645) |
| 5 | 2B002886 | LEFT REINFORCEMENT WITH IP (#2B002886) |
| 6 | 2B003145000YN4 | INTERNAL BAG PART (LEFT) (#2B003145000YN4) |
| 7 | 2B003231 | LH pannier support assembly (#2B003231) |
| 8 | 2B003183 | BAG INTERNAL COVER (LEFT) (#2B003183) |
| 9 | 2B003208100YN4 | Lh latch (#2B003208100YN4) |
| 10 | 575268 | PLATE (#575268) |
| 11 | AP8152298 | Screw w/ flange (#AP8152298) |
| 12 | AP8152285 | Screw w/ flange (#AP8152285) |
| 13 | 843213 | Washer (#843213) |
| 14 | 621099 | SPRING (#621099) |
| 15 | 621097 | PUSH BUTTON PIN (#621097) |
| 16 | 621098 | SEAT FOR PUSH BUTTON PIN (#621098) |
| 17 | AP8152306 | Self-Locking Nut (#AP8152306) |
| 18 | 2B0033036 | LEFT BAG DOOR ASM (#2B0033036) |
| 19 | 2B003266 | BAG GASKET (#2B003266) |
| 20 | CM017410 | SPRING PLATE (#CM017410) |
| 21 | 259349 | SCREW (#259349) |
| 22 | 2B002418 | HEX HEAD M6X16 FLANGED pre-impregnated (#2B002418) |
| 23 | AP8220238 | Rubber spacer * (#AP8220238) |
| 24 | AP8144087 | Front lateral rubber (#AP8144087) |
| 25 | AP8201855 | Rear fairing cable (#AP8201855) |
| 26 | AP8102671 | PLASTIC RIVET (#AP8102671) |
| 27 | AP8150413 | Self-Tap Screw (#AP8150413) |
| 28 | AP8706322 | Bush (#AP8706322) |
| 29 | AP8150011 | WASHER 4,3X12X1* (#AP8150011) |
| 30 | AP8150204 | Nut, 4mm (#AP8150204) |
| 31 | 2B002836500YN4 | BAGAGE COMPARTMENT (LEFT) (#2B002836500YN4) |
| 32 | AP8152338 | SCREW W/ FLANGE M5x20 (#AP8152338) |
| 33 | 254485 | SPRING PLATE (M6) (#254485) |
| 34 | AP8102375 | Clip (#AP8102375) |
| 35 | B063932 | BAGS FIXING PLATE (#B063932) |
| 36 | AP8152287 | Screw w/flange (#AP8152287) |
| 37 | AP8120592 | Washer (#AP8120592) |
| 38 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 40 | AP8150493 | HEX SOCKET SCREW (#AP8150493) |
| 41 | 883118 | Hinge (#883118) |
| 42 | 2B003389 | Reflector support (#2B003389) |
| 43 | AP8127360 | Rear reflector, red (#AP8127360) |
