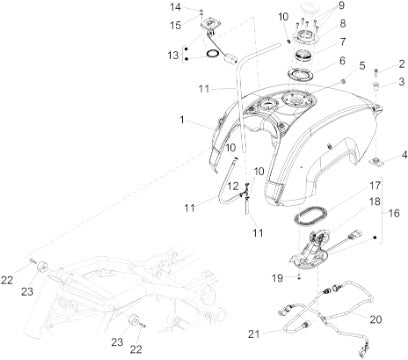

2016 Mgx 21 Flying Fortress 1400 ABS E4 Tank Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B000147 | FUEL TANK (#2B000147) |
| 1 | 2B000147500YN4 | FUEL TANK ASSEMBLY X RICA (#2B000147500YN4) |
| 2 | AP8152281 | Screw w/ flange M6x30* (#AP8152281) |
| 3 | AP8121511 | Bush (#AP8121511) |
| 4 | AP8120557 | Tank rubber (#AP8120557) |
| 5 | AP8120405 | Rubber spacer * (#AP8120405) |
| 6 | B063080 | SEAL (#B063080) |
| 7 | B063246 | UNION (#B063246) |
| 8 | B063079 | FUEL CUP'S LOCK FLANGE (#B063079) |
| 9 | B043864 | SCREW (CYLINDER HEAD) (#B043864) |
| 10 | AP8101595 | Hose Clamp (#AP8101595) |
| 11 | 00823944050 | HOSE (#00823944050) |
| 12 | AP8104666 | Tee union D.5 (#AP8104666) |
| 13 | B063706 | FUEL LEVEL GAUGE (#B063706) |
| 14 | AP8150311 | Low self-locking nut M5 (#AP8150311) |
| 15 | 95008205 | Washer 5.3mm (#95008205) |
| 16 | B063104 | FUEL PUMP (#B063104) |
| 17 | 01107490 | GASKET FUEL PUMP (#01107490) |
| 18 | 01106090 | fuel filter 01106090 |
| 19 | AP8152273 | Screw w/flange (#AP8152273) |
| 20 | 2B002249 | ENGINE FUEL PIPE (#2B002249) |
| 21 | 2B002248 | TANK FUEL PIPE (#2B002248) |
| 22 | 98882416 | Screw 8mm x 16 (#98882416) |
| 23 | AP8201124 | Rubber Spacer (#AP8201124) |
