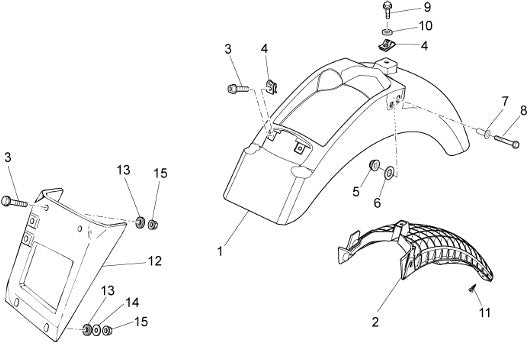

2016 V7 II Racer 750 E3 ABS Frame Rear Body I Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 1 | ||
| 2 | 978947 | REAR COVER (#978947) |
| 3 | ||
| 4 | 254485 | SPRING PLATE (M6) (#254485) |
| 5 | 92630108 | NUT 8MM (#92630108) |
| 6 | 91120806 | SPACER (#91120806) |
| 7 | 95005310 | WASHER (#95005310) |
| 8 | 98370835 | ALLEN BOLT (#98370835) |
| 9 | ||
| 10 | 91180601 | Spacer (#91180601) |
| 11 | ||
| 12 | ||
| 13 | ||
| 14 | 95100141 | WASHER (#95100141) |
| 15 |
