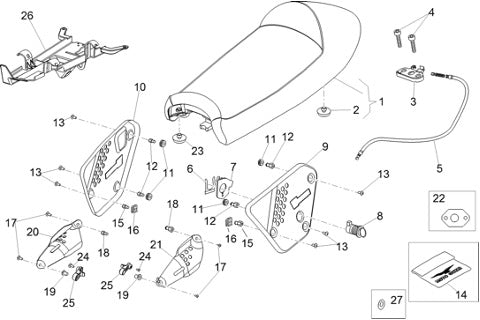

2016 V7 II Racer 750 E3 ABS Saddle Central Bod
| Position | Part Number | Description |
|---|---|---|
| 1 | 89817800A3 | SADDLE, ASSY. (#89817800A3) |
| 1 | 89817800A4 | Saddle (#89817800A4) |
| 2 | 32461610 | Rubber Spacer - Nevada (#32461610) |
| 3 | AP8102913 | Pass.saddle connecti (#AP8102913) |
| 4 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 5 | 883295 | SADDLE TRASMISSION (#883295) |
| 6 | AP8121420 | Fork Spring (#AP8121420) |
| 7 | 978415 | Plate (#978415) |
| 8 | 977527 | SERRATURA BAULETTO (#977527) |
| 9 | 2B000839 | fairings left (#2B000839) |
| 10 | 2B000838 | RIGHT SIDE COVER GASKET 2B000838 (#2B000838) |
| 11 | 91551086 | GROMMET (#91551086) |
| 12 | 886368 | ELEMENT (#886368) |
| 13 | 976614 | SCREW (CYLINDER HEAD) (#976614) |
| 14 | 886841 | SADDLE COVER (#886841) |
| 15 | 886706 | Spacer (#886706) |
| 16 | 254485 | SPRING PLATE (M6) (#254485) |
| 17 | 98370515 | ALLEN SCREW (#98370515) |
| 18 | AP8120531 | Rubber w/ insert * (#AP8120531) |
| 19 | 886727 | Spacer (#886727) |
| 20 | 2B000841 | cover right (#2B000841) |
| 21 | 2B000842 | cover right (#2B000842) |
| 22 | 886820 | PLATE (#886820) |
| 23 | AP8220238 | Rubber spacer * (#AP8220238) |
| 24 | 98692313 | Hex Socket Screw M6X12 (#98692313) |
| 25 | 2B001988 | Support (#2B001988) |
| 26 | B063431 | FRAME COVER (#B063431) |
| 27 | 95005305 | WASHER (#95005305) |
