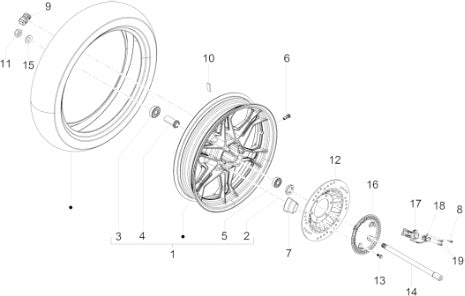

2016 V7 II Stone 750 E3 ABS Rear Wheel II
| Position | Part Number | Description |
|---|---|---|
| 1 | 887573 | Rear wheel (#887573) |
| 2 | 90402538 | Gasket ring (#90402538) |
| 3 | 92204218 | BEARING (#92204218) |
| 4 | 27633910 | SPACER A (#27633910) |
| 5 | 92204217 | BALL BEARING, REAR WHEEL (#92204217) |
| 6 | 03617710 | Air Valve (#03617710) |
| 7 | 32636160 | Support rubber part (#32636160) |
| 8 | 98612216 | ALLEN BOLT (#98612216) |
| 9 | 32632510 | Rubber Coupling - Breva (#32632510) |
| 10 | 14616150 | WEIGHTS (#14616150) |
| 11 | 92606316 | Nut (#92606316) |
| 12 | 887448 | Brake disc (#887448) |
| 13 | 894505 | Screw w/ flange (#894505) |
| 14 | 32633360 | Rear Wheel Spindle - Nevada (#32633360) |
| 15 | 31634481 | Washer (#31634481) |
| 16 | 2B000225 | Encoder (#2B000225) |
| 17 | 2B000377 | ABS sensor support (#2B000377) |
| 18 | 859792 | Sensor ABS (#859792) |
| 19 | 98682312 | Screw, 6x12mm (#98682312) |
