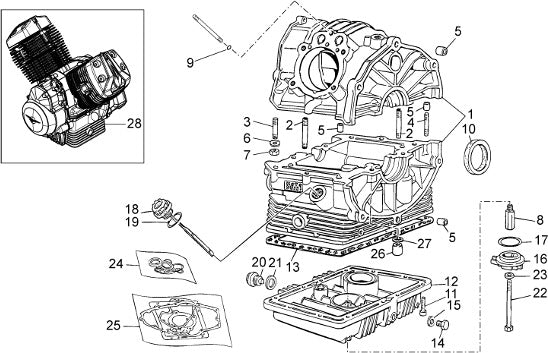

2016 V7 II Stornello 750 E3 ABS 2016 D Crank Case
| Position | Part Number | Description |
|---|---|---|
| 1 | 2A0002355 | COMPLETE CRANKCASE (#2A0002355) |
| 2 | 96451560 | STUD (#96451560) |
| 3 | 96451430 | BOLT (#96451430) |
| 4 | 96508055 | STUD (#96508055) |
| 5 | 19015020 | BUSH (#19015020) |
| 6 | 61270300 | WASHER (#61270300) |
| 7 | 92606208 | NUT (#92606208) |
| 8 | 19003800 | CONNECTION (#19003800) |
| 9 | 90706076 | O RING (#90706076) |
| 10 | 886365 | CRANKCASE SEAL (886365) (#886365) |
| 11 | 98682325 | BOLT (#98682325) |
| 12 | 976604 | OIL SUMP (#976604) |
| 13 | 887004 | OIL PAN GASKET(#887004) |
| 14 | 31003766 | DRAIN PLUG (#31003766) |
| 15 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 16 | 1A005199 | Oil filter cover (#1A005199) |
| 17 | 90706444 | O RING (#90706444) |
| 18 | 883826 | Oil load plug (#883826) |
| 19 | 90706281 | O- RING (#90706281) |
| 20 | 12003702 | DRAIN PLUG MAGNETIC (#12003702) |
| 21 | 95100709 | CRUSH WASHER (95100709) (#95100709) |
| 22 | 27152885 | BOLT (#27152885) |
| 23 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 24 | ||
| 25 | 32999010 | Gasket Set - Breva (#32999010) |
| 26 | ||
| 27 | 95129180 | WAVE WASHER (#95129180) |
| 28 | 2L0002405 | ENGINE V7 II -RICA- (#2L0002405) |
