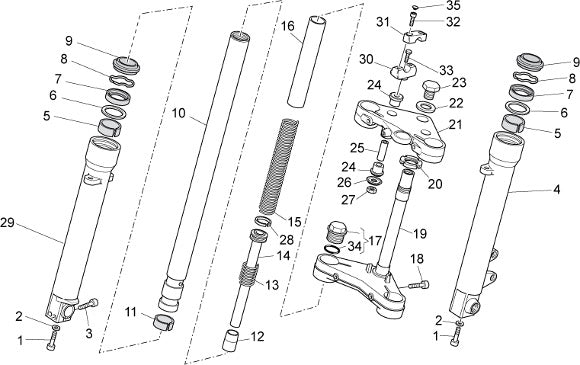

2016 V7 II Stornello 750 E3 ABS 2016 D Front Fork II
| Position | Part Number | Description |
|---|---|---|
| 1 | 887878 | SPECIAL SCREW (#887878) |
| 2 | 887879 | Washer (#887879) |
| 3 | 887880 | SCREW (CYLINDER HEAD) (#887880) |
| 4 | 2R000110 | LEFT SLEEVE (#2R000110) |
| 5 | 887882 | BUSHING (887882) (#887882) |
| 6 | 887883 | Washer (#887883) |
| 7 | 887884 | Gasket ring (#887884) |
| 8 | 887885 | Stop ring (#887885) |
| 9 | 887886 | Dust cover (#887886) |
| 10 | 2B001591 | LEG (#2B001591) |
| 11 | 887888 | BUSHING (887888) (#887888) |
| 12 | 887889 | Drift (#887889) |
| 13 | 887890 | Return spring (#887890) |
| 14 | 887891 | Plunger, complete (#887891) |
| 15 | 2R000243 | SPRING (#2R000243) |
| 16 | 887893 | Pipe (#887893) |
| 17 | 887894 | Plug cpl. (#887894) |
| 18 | 887895 | SCREW (CYLINDER HEAD) (#887895) |
| 19 | 887896 | Stem base (#887896) |
| 20 | 31513480 | BOLT M25X1 (#31513480) |
| 21 | 887898 | Fork upper plate (#887898) |
| 22 | 887899 | Washer (#887899) |
| 23 | 887900 | NUT (#887900) |
| 24 | 887901 | Rubber spacer (#887901) |
| 25 | 887902 | Spacer (#887902) |
| 26 | 887903 | Cup (#887903) |
| 27 | 887904 | Nut (#887904) |
| 28 | 887905 | Ring (#887905) |
| 29 | 2R000109 | RIGHT SLEEVE (#2R000109) |
| 30 | 887912 | Lower U-bolt (#887912) |
| 31 | 887913 | Upper U-bolt (#887913) |
| 32 | 887914 | Screw (#887914) |
| 33 | 887915 | Screw (#887915) |
| 34 | 887916 | SEAL RING (O-RING) (#887916) |
| 35 | 23943410 | CHROME PLUG (#23943410) |
