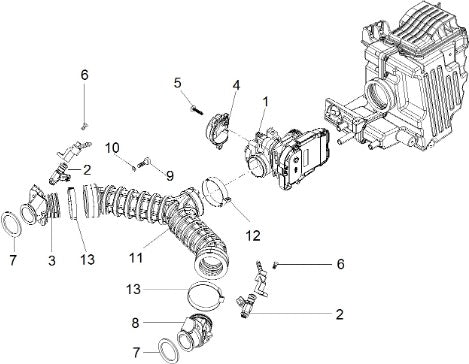

2016 V7 II Stornello 750 E3 ABS 2016 D Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | CM228306 | ELETTRONIC INJECTOR DEVICE (#CM228306) |
| 2 | ||
| 3 | 2A0007655 | RH intake connector (#2A0007655) |
| 3 | 32115010 | RH Manifold - Breva (#32115010) |
| 4 | 880260 | THROTTLE BODY COVER (#880260) |
| 5 | B016796 | CONVEX HEAD SCREW TORX M5X16 (#B016796) |
| 6 | AP8152298 | Screw w/ flange (#AP8152298) |
| 7 | 32115510 | Gasket - Breva (#32115510) |
| 8 | 2A0007645 | LH intake connector (#2A0007645) |
| 8 | 32115011 | LH Manifold - Breva (#32115011) |
| 9 | 98622322 | ALLEN BOLT (#98622322) |
| 10 | 03013800 | WAVE WASHER (#03013800) |
| 11 | 2B001031 | V7 INTAKE BOOT (2B001031) (#2B001031) |
| 12 | 884310 | CLAMP (#884310) |
| 13 | 884311 | CLAMP (#884311) |
