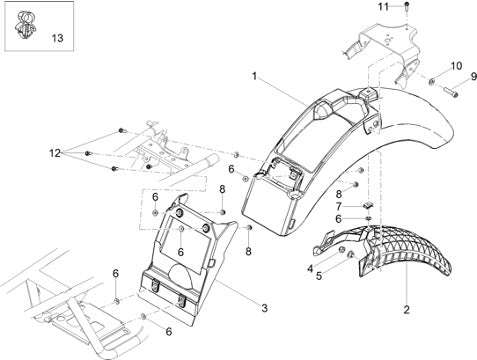

2017 2019 V7 III Racer 750 E4 ABS Body Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 978946 | REAR FENDER (#978946) |
| 1 | 97894600XN6 | Rear mudguard, black (#97894600XN6) |
| 2 | 978947 | REAR COVER (#978947) |
| 3 | 2B001783 | MUDGUARD PLATE (#2B001783) |
| 4 | 92630108 | NUT 8MM (#92630108) |
| 5 | 91120806 | SPACER (#91120806) |
| 6 | AP8121032 | Bushing (#AP8121032) |
| 7 | 254485 | SPRING PLATE (M6) (#254485) |
| 8 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 9 | 98690435 | Hex socket screw (#98690435) |
| 10 | 95005310 | WASHER (#95005310) |
| 11 | 00H02402282 | INLET MANIFOLD SECURING SCREW (#00H02402282) |
| 12 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 13 | 2B004088 | CABLE RETAINER FOR THICKNESS 2.5 / 4 mm (#2B004088) |
