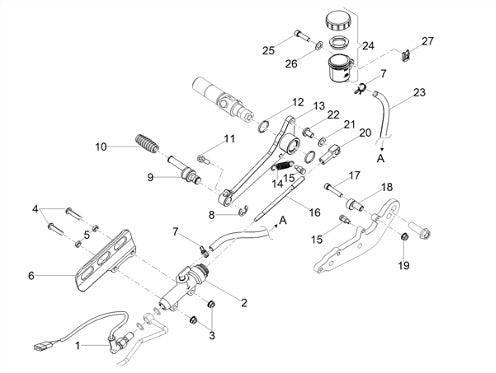

2017 2019 V7 III Racer 750 E4 ABS Brake System Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 854973 | Brake light switch (#854973) |
| 2 | 2B000508 | BRAKE PUMP (#2B000508) |
| 3 | 92630206 | NUT (#92630206) |
| 4 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 5 | AP8134640 | Air box spacer (#AP8134640) |
| 6 | 01665410 | REAR MASTER CYL. GUARD (#01665410) |
| 7 | AP8101594 | Hose clamp D10,1* (#AP8101594) |
| 8 | AP8150462 | Circlip d9 (#AP8150462) |
| 9 | 886665 | Brake lever pin (#886665) |
| 10 | AP8120912 | Lever rubber (#AP8120912) |
| 11 | AP8150044 | Hex socket screw (#AP8150044) |
| 12 | AP9100477 | O-ring 18x2 (#AP9100477) |
| 13 | 898285 | Brake lever (#898285) |
| 14 | AP8121927 | Rear brake lever spr (#AP8121927) |
| 15 | 898286 | Fixing pin (#898286) |
| 16 | 2B001597 | Brake pump rod (#2B001597) |
| 17 | AP8150051 | Hex socket screw M5X35* (#AP8150051) |
| 18 | 886666 | BUSHING (#886666) |
| 19 | AP8150451 | NUT M5-UNI7474-A2-70 INOX (#AP8150451) |
| 20 | 18257551 | BLOCK (#18257551) |
| 21 | 658837 | WASHER, WAVE (#658837) |
| 22 | 898287 | Brake lever pin (#898287) |
| 23 | 2B001780 | PIPE OIL (#2B001780) |
| 24 | 2B002130 | OIL TANK RESERVOIR (2B002130) (#2B002130) |
| 25 | AP8152298 | Screw w/ flange (#AP8152298) |
| 26 | 95100059 | WASHER (#95100059) |
| 27 | AP8102375 | Clip (#AP8102375) |
