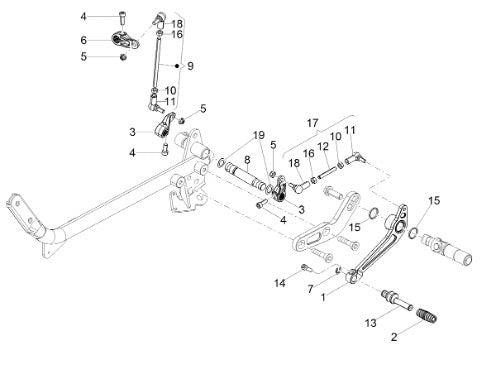

2017 2019 V7 III Racer 750 E4 ABS Gear Lever
| Position | Part Number | Description |
|---|---|---|
| 1 | 898282 | Gear lever (#898282) |
| 2 | AP8120912 | Lever rubber (#AP8120912) |
| 3 | 898283 | Gear lever (#898283) |
| 4 | AP8150137 | Hex socket screw M6x16* (#AP8150137) |
| 5 | 92630707 | NUT (#92630707) |
| 6 | 20258221 | Shift lever (#20258221) |
| 7 | AP8150462 | Circlip d9 (#AP8150462) |
| 8 | 2B001009 | GEAR DRIVE LEVER PIN (#2B001009) |
| 9 | 2B001941 | Connecting rod gearbox driver (#2B001941) |
| 9 | 898284 | LH Plate (#898284) |
| 10 | AP8221277 | FOOT PEG SPRING (#AP8221277) |
| 11 | AP8110053 | Left ball joint M6 (#AP8110053) |
| 12 | 856796 | Gearbox linkage rod (#856796) |
| 13 | 886665 | Brake lever pin (#886665) |
| 14 | AP8150044 | Hex socket screw (#AP8150044) |
| 15 | AP9100477 | O-ring 18x2 (#AP9100477) |
| 16 | AP8150026 | Nut M6* (#AP8150026) |
| 17 | 887280 | Tie rod gear control (#887280) |
| 18 | AP8210007 | RH ball joint M6 (#AP8210007) |
| 19 | 95129260 | SPRING WASHER (#95129260) |
