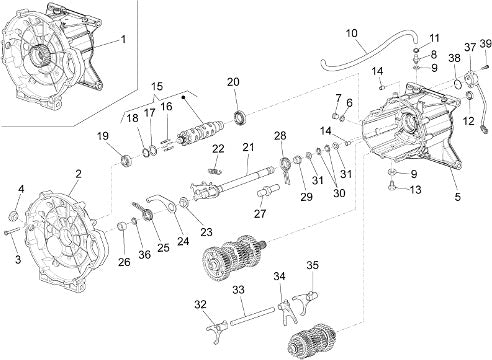

2017 2020 Audace 1400 Carbon E4 ABS Engine Gear Box Selector Shift Cam
| Position | Part Number | Description |
|---|---|---|
| 1 | 9769975 | Gear box assy 1400 -RICA- (#9769975) |
| 2 | ||
| 3 | 97202355 | Screw W/Flange M6 X 55 (#97202355) |
| 4 | 93180220 | TIMING HOLE PLUG (#93180220) |
| 5 | 8868655 | GEAR BOX (#8868655) |
| 6 | 18144350 | CRUSH WASHER (#18144350) |
| 7 | 95980319 | Oil Plug M18X1,5 (#95980319) |
| 8 | 05204930 | COLONNETTA SFIATO OLIO (#05204930) |
| 9 | 01528930 | SEALING WASHER (#01528930) |
| 10 | ||
| 11 | ||
| 12 | 90401424 | Gasket Ring (#90401424) |
| 13 | 31003766 | DRAIN PLUG (#31003766) |
| 14 | 19002020 | BUSH (#19002020) |
| 15 | 886875 | ASSY GEAR DRUM (#886875) |
| 16 | 05234631 | Pin (#05234631) |
| 17 | 05235531 | Spacer (#05235531) |
| 18 | 90271022 | CIRCLIP A (#90271022) |
| 19 | 92201117 | BEARING (#92201117) |
| 20 | 92201025 | Ball Bearing 25X42X9 (#92201025) |
| 21 | 05236231 | Preselection Complete (#05236231) |
| 22 | 05238231 | Spring (#05238231) |
| 23 | 05238431 | Bush (#05238431) |
| 24 | ||
| 25 | ||
| 26 | 05234230 | Spacer (#05234230) |
| 27 | ||
| 28 | ||
| 29 | 05238131 | Spacer (#05238131) |
| 30 | 90271014 | RING USE 90271015 (#90271014) |
| 31 | 05239330 | Fifth Wheel (#05239330) |
| 32 | 05230531 | Fork 1A-3A (#05230531) |
| 33 | 05232431 | Fork Shaft (#05232431) |
| 34 | 05232631 | Fork (#05232631) |
| 35 | 05230831 | Fork 2A-4A (#05230831) |
| 36 | 90353014 | Circlip (#90353014) |
| 37 | 857265 | ELECTRONIC UNIT (#857265) |
| 38 | 857494 | SEAL RING (O-RING) (#857494) |
| 39 |
