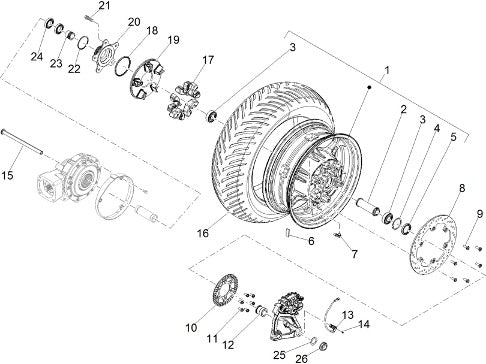

2017 2020 California 1400 Touring E4 ABS Wheels Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 887529 | Rear wheel wiht bearings (#887529) |
| 2 | 887530 | REAR WHEEL INTERNAL SPACER (#887530) |
| 3 | AP8110093 | BEARING 6205-2RSH/C3 25X52X15 (#AP8110093) |
| 4 | AP8125839 | Snap ring d52 (#AP8125839) |
| 5 | AP8125838 | OIL SEAL RIPPER GAT AS AS 38X52X7 NBR 75 (#AP8125838) |
| 6 | 14616150 | WEIGHTS (#14616150) |
| 7 | 03617710 | Air Valve (#03617710) |
| 8 | 887489 | Brake disc (#887489) |
| 9 | 30611460 | ALLEN BOLT (#30611460) |
| 10 | 887875 | FRONT TONE WHEEL (#887875) |
| 11 | AP8152285 | Screw w/ flange (#AP8152285) |
| 12 | 887495 | REAR WHEEL OUTSIDE SPACER (#887495) |
| 13 | 859792 | Sensor ABS (#859792) |
| 14 | AP8152273 | Screw w/flange (#AP8152273) |
| 15 | 886967 | REAR WHEEL AXLE (#886967) |
| 16 | 887575 | REAR TYRE 200*60 R16 (#887575) |
| 17 | B064290 | RUBBER DUMPER (#B064290) |
| 18 | 90706664 | Ring (#90706664) |
| 19 | 887311 | DAMPER DRAGGING DISK (#887311) |
| 20 | 2B000090 | DAMPER DISK FLANGE (#2B000090) |
| 21 | B063849 | HEXAGON FLANGE BOLT DIN 6921 M10X30 10.9 (#B063849) |
| 22 | 887518 | SEAL RING (O-RING) (#887518) |
| 23 | 887461 | DAMPER SPACER (#887461) |
| 24 | 887517 | BEARING (#887517) |
| 25 | 95005325 | Washer, Front Axle (#95005325) |
| 26 | AP8152324 | Wheel spindle nut M25x1,5 (#AP8152324) |
