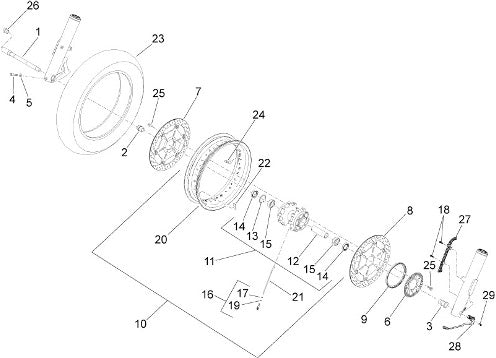

2017 2020 Eldorado 1400 E4 ABS Wheels Front Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 887566 | FRONT WHEEL AXLE (#887566) |
| 2 | 887578 | RH Front wheel spacer (#887578) |
| 3 | 887579 | LH Front wheel spacer (#887579) |
| 4 | 98680445 | Screw (#98680445) |
| 5 | 95005308 | WASHER M8 (#95005308) |
| 6 | 887875 | FRONT TONE WHEEL (#887875) |
| 7 | 887439 | RH front brake disc (#887439) |
| 8 | 887430 | FRONT BRAKE DISK (#887430) |
| 9 | B063440 | TONE WHEEL PROTECTION (#B063440) |
| 10 | 2B001948 | Front wheel (#2B001948) |
| 11 | 2B001233 | FRONT WHEEL HUB (#2B001233) |
| 12 | 887429 | Front wheel ins.spacer (#887429) |
| 13 | AP8125842 | Snap ring d47 (#AP8125842) |
| 14 | AP8125841 | Gasket ring 30x47x7 (#AP8125841) |
| 15 | AP8110094 | Bearing 6005-2rs1 (#AP8110094) |
| 16 | 978810 | Nipple (#978810) |
| 17 | 978811 | Ring (#978811) |
| 18 | AP8152043 | HEX SOCKET SCREW (#AP8152043) |
| 19 | 90706061 | O RING (#90706061) |
| 20 | 2B0019544 | WHEEL RIM (#2B0019544) |
| 21 | 2B001949 | Front spoke (#2B001949) |
| 22 | 14616150 | WEIGHTS (#14616150) |
| 23 | 2B001297 | TYRE 130/90/16 (#2B001297) |
| 24 | 03617710 | Air Valve (#03617710) |
| 25 | 887762 | Screw w/ flange M8x22 (#887762) |
| 26 | 93180111 | RUBBER PLUG (#93180111) |
| 27 | B044314 | PLATE (#B044314) |
| 28 | 859792 | Sensor ABS (#859792) |
| 29 | AP8152273 | Screw w/flange (#AP8152273) |
