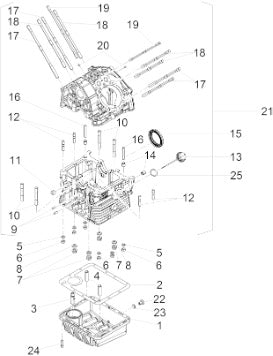

2017 V7 III Anniversario 750 E4 ABS Engine Crankcases I
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | ||
| 3 | 19003800 | CONNECTION (#19003800) |
| 4 | ||
| 5 | 658837 | WASHER, WAVE (#658837) |
| 6 | 92606208 | NUT (#92606208) |
| 7 | ||
| 8 | ||
| 9 | 19018920 | PEG (#19018920) |
| 10 | ||
| 11 | 831135 | TAPER THREAD PLUG (#831135) |
| 12 | 96451430 | BOLT (#96451430) |
| 13 | 883826 | Oil load plug (#883826) |
| 14 | 19015020 | BUSH (#19015020) |
| 15 | 886365 | CRANKCASE SEAL (886365) (#886365) |
| 16 | 96508055 | STUD (#96508055) |
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | 484993 | ANTI-TAPPING DOWEL (#484993) |
| 21 | ||
| 22 | 31003766 | DRAIN PLUG (#31003766) |
| 23 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 24 | 98682325 | BOLT (#98682325) |
| 25 | 90706281 | O- RING (#90706281) |
