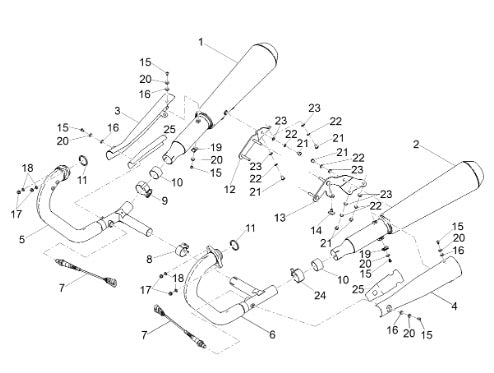

2019 2020 V9 Bobber 850 E4 ABS Exhaust Pipe
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B0048545 | Right muffler (#2B0048545) |
| 2 | 2B0048535 | Left muffler (#2B0048535) |
| 3 | 2B0022935 | Right painted protection (#2B0022935) |
| 4 | 2B0045945 | (#2B0045945) |
| 5 | 2B004548 | Bobber Rh Exhaust pipe (#2B004548) |
| 6 | 2B004549 | Bobber Left Exhaust pipe (#2B004549) |
| 7 | 896110 | Lamda sensor (#896110) |
| 8 | B063292 | Ø 37 METAL PIPE CLAMP (#B063292) |
| 9 | 874957 | CLAMP (#874957) |
| 10 | 91113826 | Bushing (#91113826) |
| 11 | 852090 | EXHAUST PIPE GASKET 852090 (#852090) |
| 12 | 2B002533 | RIGHT MUFFLER SUPPORT BRACKET WITH I.P. (#2B002533) |
| 13 | 2B002532 | LEFT MUFFLER SUPPORT BRACKET WITH I.P. (#2B002532) |
| 14 | AP8120455 | Rubber spacer (#AP8120455) |
| 15 | 2B002187 | SCREW HEX M6x10 BLACKstainless steel (#2B002187) |
| 16 | 876879 | ELASTIC SPACER (#876879) |
| 17 | 92660021 | Nut (#92660021) |
| 18 | 14615901 | WASHER (#14615901) |
| 19 | 254485 | SPRING PLATE (M6) (#254485) |
| 20 | 834951 | Washer 14x6,1x2,1 (#834951) |
| 21 | AP8152055 | Hex socket screw (#AP8152055) |
| 23 | 95008208 | WASHER (#95008208) |
| 24 | 2B001935 | METAL PIPE CLAMP (#2B001935) |
| 25 | 2B003284 | THERMICAL PROTECTION (#2B003284) |
