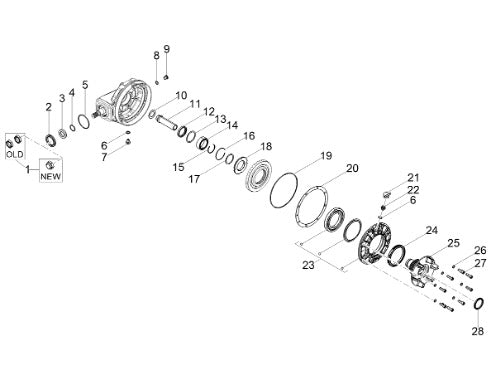

2019 2020 V9 Bobber 850 E4 ABS Rear Transmission Components
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B005012 | NUT FIXING PINION (#2B005012) |
| 1 | 976649 | NUT FOR CRANKSHAFT (#976649) |
| 2 | 2B000404 | SEAL RING (#2B000404) |
| 3 | 2B001311 | SPACER PINION (#2B001311) |
| 4 | 90706188 | O RING (#90706188) |
| 5 | 90706584 | O RING (#90706584) |
| 6 | 01528930 | SEALING WASHER (#01528930) |
| 7 | 31003766 | DRAIN PLUG (#31003766) |
| 8 | 224566 | PACKING (#224566) |
| 9 | 05351230 | Oil Plug M12X1,5 (#05351230) |
| 10 | 37359005 | OUTER WASHER (#37359005) |
| 11 | 2B001307 | SPACER (#2B001307) |
| 12 | 90413850 | SEAL (#90413850) |
| 13 | 12351100 | RING COPPER METAL SPACER (#12351100) |
| 14 | ||
| 15 | 2B002200 | Snap ring for shaft SEEGER 40 SW (#2B002200) |
| 16 | B064304 | INTERNAL CIRCLIP (#B064304) |
| 17 | 19351100 | SHIM (#19351100) |
| 18 | 2B002536 | RING NUT (#2B002536) |
| 19 | 90706958 | O RING (#90706958) |
| 20 | 04355100 | SHIM (#04355100) |
| 20 | 04355101 | SHIM (#04355101) |
| 20 | 04355102 | SHIM (#04355102) |
| 20 | 04355103 | SHIM (#04355103) |
| 20 | 04355104 | SHIM (#04355104) |
| 20 | 04355105 | SHIM (#04355105) |
| 20 | 04355106 | SHIM (#04355106) |
| 21 | 2B002807 | CAP (#2B002807) |
| 22 | 2A000823 | Breather assembly (#2A000823) |
| 23 | 2B0033875 | Complete flange (#2B0033875) |
| 24 | 2B002535 | SEAL RING 80.100.10 (#2B002535) |
| 25 | 2B001303 | FIX COUPLING OF DUMPER (#2B001303) |
| 25 | 2B007759 | (#2B007759) |
| 26 | 14615901 | WASHER (#14615901) |
| 27 | 2B002171 | Torx Screw M8X25 pre-applied (#2B002171) |
| 28 | 2B007243 | SEAL RING 26.42.7 (#2B007243) |
