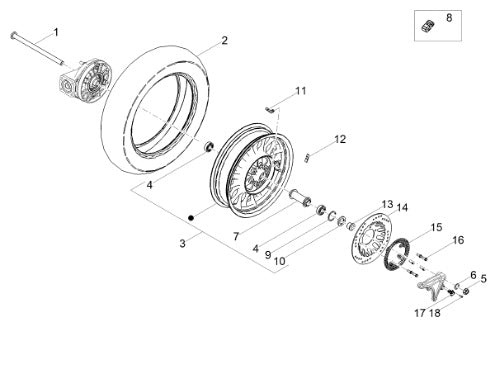

2019 2020 V9 Bobber 850 E4 ABS Wheels Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B001310 | REAR WHEEL AXLE (#2B001310) |
| 2 | 2B002900 | Rear tyre 150/80 16 inch (CONTINENTAL) (#2B002900) |
| 3 | 2B001114 | Rear wheel 4x16 inch with bearings (#2B001114) |
| 4 | 92204220 | BEARING (#92204220) |
| 5 | 648708 | REAR FRONT NUT (#648708) |
| 6 | AP8125687 | WHEEL PIN WASHER (#AP8125687) |
| 7 | 2B001279 | Rear wheel spacer assembly (#2B001279) |
| 8 | 32632510 | Rubber Coupling - Breva (#32632510) |
| 9 | 90272047 | CIRCLIP (#90272047) |
| 10 | AP8110109 | Gasket ring 28X47X7 (#AP8110109) |
| 11 | 03617710 | Air Valve (#03617710) |
| 12 | 14616150 | WEIGHTS (#14616150) |
| 13 | 2B001956 | SPACER WHEEL (#2B001956) |
| 14 | 887448 | Brake disc (#887448) |
| 15 | 2B004396R | Tone wheel (#2B004396R) |
| 16 | 887762 | Screw w/ flange M8x22 (#887762) |
| 17 | 859792 | Sensor ABS (#859792) |
| 18 | 1C001499 | SCREW (#1C001499) |
