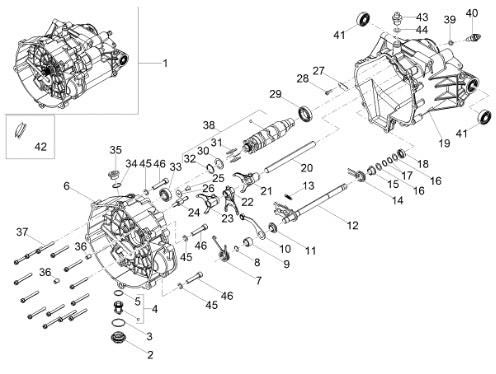

2019 2020 V9 Bobber Sport 850 E4 ABS Engine Gear Box Selector Shift Cam
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | ||
| 3 | 285536 | O-RING GASKET 31.47x1.78 (#285536) |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | 90353014 | Circlip (#90353014) |
| 9 | 05234230 | Spacer (#05234230) |
| 10 | ||
| 11 | 05238431 | Bush (#05238431) |
| 12 | ||
| 13 | 05238231 | Spring (#05238231) |
| 14 | ||
| 15 | ||
| 16 | 05239330 | Fifth Wheel (#05239330) |
| 17 | 90271014 | RING USE 90271015 (#90271014) |
| 18 | 90401424 | Gasket Ring (#90401424) |
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | ||
| 25 | ||
| 26 | 873905 | WASHER (#873905) |
| 27 | ||
| 28 | ||
| 29 | 857250 | Ball bearing 61905 - 25X42X9 (#857250) |
| 30 | 05235531 | Spacer (#05235531) |
| 31 | 05234631 | Pin (#05234631) |
| 32 | 90271022 | CIRCLIP A (#90271022) |
| 33 | 834764 | BEARING (#834764) |
| 34 | 90706203 | O RING (#90706203) |
| 35 | 12022600 | PLUG (#12022600) |
| 36 | 19002020 | BUSH (#19002020) |
| 37 | ||
| 38 | ||
| 39 | ||
| 40 | ||
| 41 | ||
| 42 | 93180220 | TIMING HOLE PLUG (#93180220) |
| 43 | ||
| 44 | 224566 | PACKING (#224566) |
| 45 | 658837 | WASHER, WAVE (#658837) |
| 46 | 98680440 | Screw (#98680440) |
