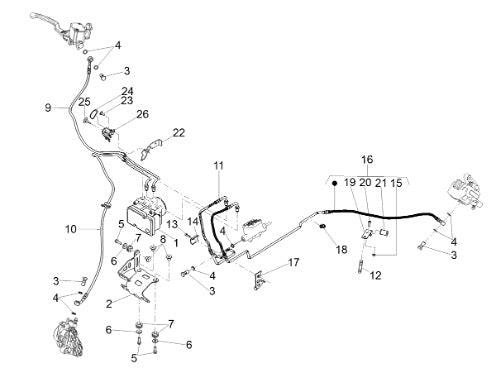

2019 2020 V9 Roamer 850 E4 ABS Brake System Abs Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2D000102 | FILLED CLUSTER MGA ABS (SPARE PARTS) (#2D000102) |
| 2 | 2B003056 | ABS hecu plate support (#2B003056) |
| 3 | AP8113003 | Oil Pipe Screw (#AP8113003) |
| 4 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 5 | 00H02402282 | INLET MANIFOLD SECURING SCREW (#00H02402282) |
| 6 | AP8150015 | Washer 6,6x18x1,6* (#AP8150015) |
| 7 | AP8120030 | Rubber Spacer (#AP8120030) |
| 8 | AP8221023 | T Bush* (#AP8221023) |
| 9 | 2B002804 | PIPE FITTING (#2B002804) |
| 10 | 2B002805 | PIPE FITTING (#2B002805) |
| 11 | 2B004618 | (#2B004618) |
| 12 | 96451316 | Stud Bolt M6 X 16 (#96451316) |
| 13 | AP8150493 | HEX SOCKET SCREW (#AP8150493) |
| 14 | 2B001614 | ABS FIXING PLATE (#2B001614) |
| 15 | AP8150451 | NUT M5-UNI7474-A2-70 INOX (#AP8150451) |
| 16 | 2B004619 | (#2B004619) |
| 17 | 2B001564 | SUPPORT PLATE WITH P.I. (#2B001564) |
| 18 | AP8121882 | Cable-guide (#AP8121882) |
| 19 | 03658330 | FASCETTA LUNGA (#03658330) |
| 20 | 895709 | Hex socket screw (#895709) |
| 21 | 03658201 | BUSHING (#03658201) |
| 22 | 2B004457 | ABS pipe carrier (#2B004457) |
| 23 | AP8150500 | / (#AP8150500) |
| 24 | AP8102386 | TIE 2,5x160 (#AP8102386) |
| 25 | AP8120001 | Rubber spacer (#AP8120001) |
| 26 | 2B004458 | ABS pipe guard (#2B004458) |
