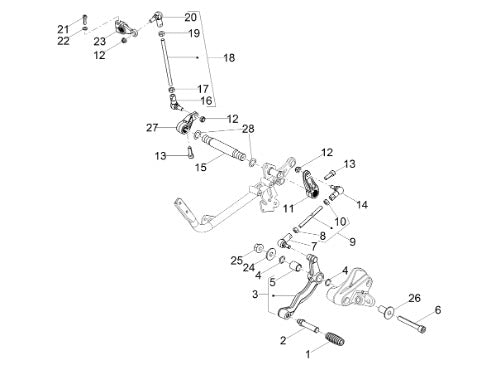

2019 2020 V9 Roamer 850 E4 ABS Gear Lever
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8120912 | Lever rubber (#AP8120912) |
| 2 | ||
| 3 | 2B003348 | Gear drive lever (#2B003348) |
| 4 | AP8144007 | O-Ring (#AP8144007) |
| 5 | 895328 | BUSH (#895328) |
| 6 | 98680460 | Hex socket screw M8x60 (#98680460) |
| 7 | 2B004821 | PRE-APPLIED ARTICULATED JOINT (#2B004821) |
| 8 | 2B004827 | RIGHT threaded nut (#2B004827) |
| 9 | 2B004960 | CONNECTING ROD WITH BOLTS (#2B004960) |
| 10 | 2B004828 | (#2B004828) |
| 11 | 2B004942 | Gear lever (#2B004942) |
| 12 | 92630707 | NUT (#92630707) |
| 13 | 98692318 | ALLEN SCREW (#98692318) |
| 14 | 2B004822 | PRE-APPLIED ARTICULATED JOINT (#2B004822) |
| 15 | 2B001009 | GEAR DRIVE LEVER PIN (#2B001009) |
| 16 | AP8110053 | Left ball joint M6 (#AP8110053) |
| 17 | AP8152138 | Nut M6 sx (#AP8152138) |
| 18 | 2B001941 | Connecting rod gearbox driver (#2B001941) |
| 19 | AP8150026 | Nut M6* (#AP8150026) |
| 20 | AP8210007 | RH ball joint M6 (#AP8210007) |
| 21 | 98632322 | Screw (#98632322) |
| 22 | 03013800 | WAVE WASHER (#03013800) |
| 23 | 20258221 | Shift lever (#20258221) |
| 24 | AP8150018 | Washer (#AP8150018) |
| 25 | 967363 | NUT (#967363) |
| 26 | AP8121509 | Bush (#AP8121509) |
| 27 | 2B004348 | Gear command lever (#2B004348) |
| 28 | 95129260 | SPRING WASHER (#95129260) |
