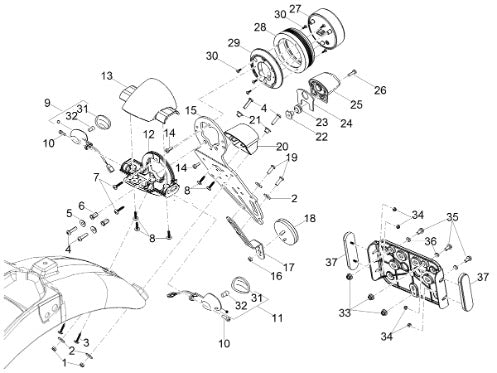

2020 V7 III Racer 10th Anniversary E4 ABS Lights Instruments Rear Lights
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8150451 | NUT M5-UNI7474-A2-70 INOX (#AP8150451) |
| 2 | AP8150248 | Washer 5.5mm x 15mm x 1.6 mm (#AP8150248) |
| 3 | CM179101 | THREAD FORMING SCREW (#CM179101) |
| 4 | B016808 | CONVEX HEAD SCREW WITH TORX M5X20 (#B016808) |
| 5 | 843213 | Washer (#843213) |
| 6 | AP8201755 | HEXAGONAL RIVET M5 (#AP8201755) |
| 7 | CM180702 | SELF-TAPPING SCREW (#CM180702) |
| 8 | CM180701 | SELF-TAPPING SCREW (#CM180701) |
| 9 | 2D000532 | (#2D000532) |
| 10 | 1B000068 | SELF-TAPPING SCREW (#1B000068) |
| 11 | 2D000531 | (#2D000531) |
| 12 | 2B006001 | REAR UPPER LAMP BODY COMPLETE (#2B006001) |
| 13 | 2B005954 | REAR UPPER LAMP BODY EU/USA (#2B005954) |
| 14 | B046202 | 4x12 Screw type torx (#B046202) |
| 15 | 2B005914 | LICENSE PLATE HOLDER (#2B005914) |
| 16 | AP8152306 | Self-Locking Nut (#AP8152306) |
| 17 | AP8134448 | Reflector Support (#AP8134448) |
| 18 | AP8224164 | Rear Reflector, Red (#AP8224164) |
| 19 | AP8152268 | Hex Socket Screw` (#AP8152268) |
| 20 | 2B005915 | PLATE LIGHT EXTENSION (#2B005915) |
| 21 | 2B006416 | SPACER (#2B006416) |
| 22 | 894566 | Bush (#894566) |
| 23 | AP8112600 | Rubber spacer * (#AP8112600) |
| 24 | AP8117258 | SPONGE (#AP8117258) |
| 25 | 85256R | 85256R NUMBER PLATE LIGHT (#85256R) |
| 26 | AP8150522 | Screw 4,2x16 (#AP8150522) |
| 27 | 2D000507 | TAIL LIGHT (USA) (#2D000507) |
| 28 | 2B005912 | REAR LAMP FLANGE USA (#2B005912) |
| 29 | 2B005913 | REAR LAMP FLANGE SUPPORT USA (#2B005913) |
| 30 | CM178603 | THREAD FORMING SCREW (#CM178603) |
| 31 | 639338 | FF RH FR LH IND. LENSE (#639338) |
| 32 | 584332 | LAMP - T/SIG. BULB - ORANGE (#584332) |
| 34 | 92630204 | Nut (#92630204) |
| 37 | AP8124718 | Rear Reflector, Red (#AP8124718) |
